ATX Power Supply Connector - Right Angle

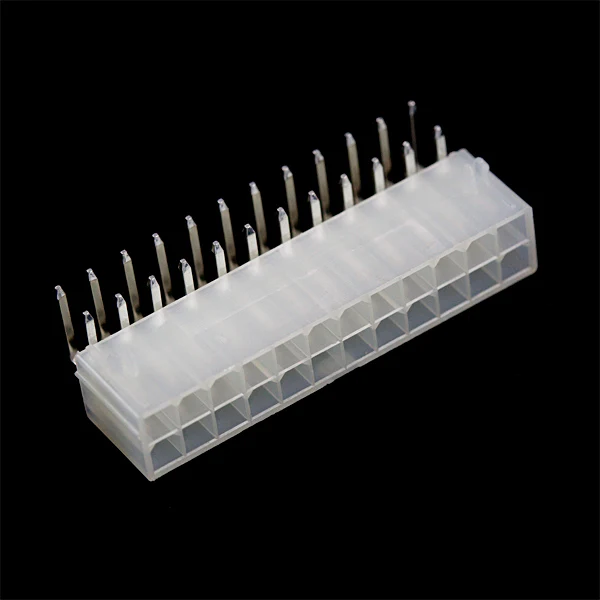

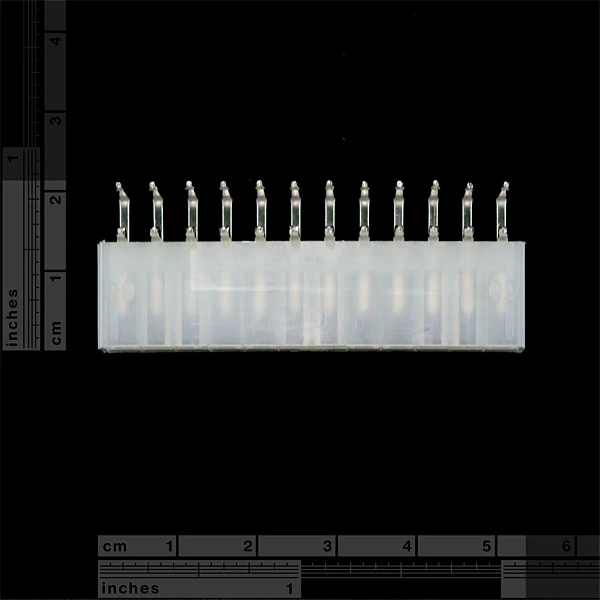

This is a right-angle, 24-pin Molex Mini-Fit Jr.ā¢ connector, commonly used as the power supply connector onĀ ATXĀ motherboards. Two rows of twelve pins are broken out two rows of through-hole male headers.
See the datasheet below for pin spacing dimensions.
Pair this connector with a standard computer power supply and you can source a number of different voltages (+3.3V, +5V, +12V, -12V, -5V) to your project.
