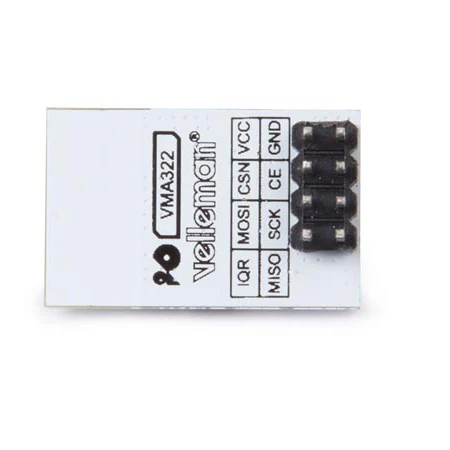

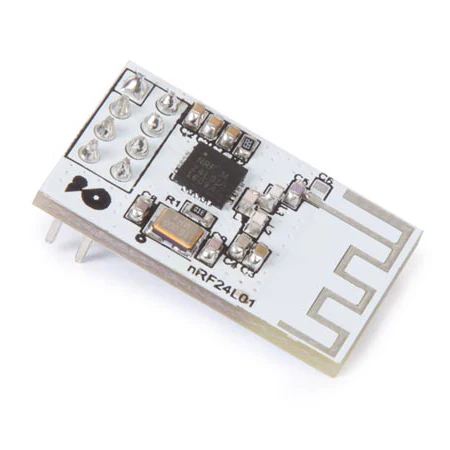

2.4 GHz nRF24L01 Wireless Tranceiver Module (2 pcs)
This module is based on the Nordic nRF24L01 - a highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band.
Nordic nRF24L01+ integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurstā¢ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.
Features
- worldwide license-free 2.4 GHz ISM band operation
- 250 kbps, 1 Mbps and 2 Mbps on-air data-rate options
- enhanced ShockBurstā¢ hardware protocol accelerator
- ultra low power consumption - months to years of battery lifetime
Specifications
- power supply: 1.9 - 3.6 V
- IO port working voltage: 0 - 3.3 V
- transmitting rate: +7 dB
- receiving sensitivity: < 90 dB
- transmission range: 250 m in open area
- dimensions: 15 x 29 mm
Manual
Info Sheets
Firmware
Product Information
Product Information
Shipping & Returns
Shipping & Returns
2.4 GHz nRF24L01 Wireless Tranceiver Module (2 pcs)
2.4 GHz nRF24L01 Wireless Tranceiver Module (2 pcs)
This module is based on the Nordic nRF24L01 - a highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band.
Nordic nRF24L01+ integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurstā¢ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.
Features
- worldwide license-free 2.4 GHz ISM band operation
- 250 kbps, 1 Mbps and 2 Mbps on-air data-rate options
- enhanced ShockBurstā¢ hardware protocol accelerator
- ultra low power consumption - months to years of battery lifetime
Specifications
- power supply: 1.9 - 3.6 V
- IO port working voltage: 0 - 3.3 V
- transmitting rate: +7 dB
- receiving sensitivity: < 90 dB
- transmission range: 250 m in open area
- dimensions: 15 x 29 mm
Manual
Info Sheets
Firmware
Original: $16.67
-65%$16.67
$5.83Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This module is based on the Nordic nRF24L01 - a highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band.
Nordic nRF24L01+ integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurstā¢ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.
Features
- worldwide license-free 2.4 GHz ISM band operation
- 250 kbps, 1 Mbps and 2 Mbps on-air data-rate options
- enhanced ShockBurstā¢ hardware protocol accelerator
- ultra low power consumption - months to years of battery lifetime
Specifications
- power supply: 1.9 - 3.6 V
- IO port working voltage: 0 - 3.3 V
- transmitting rate: +7 dB
- receiving sensitivity: < 90 dB
- transmission range: 250 m in open area
- dimensions: 15 x 29 mm
