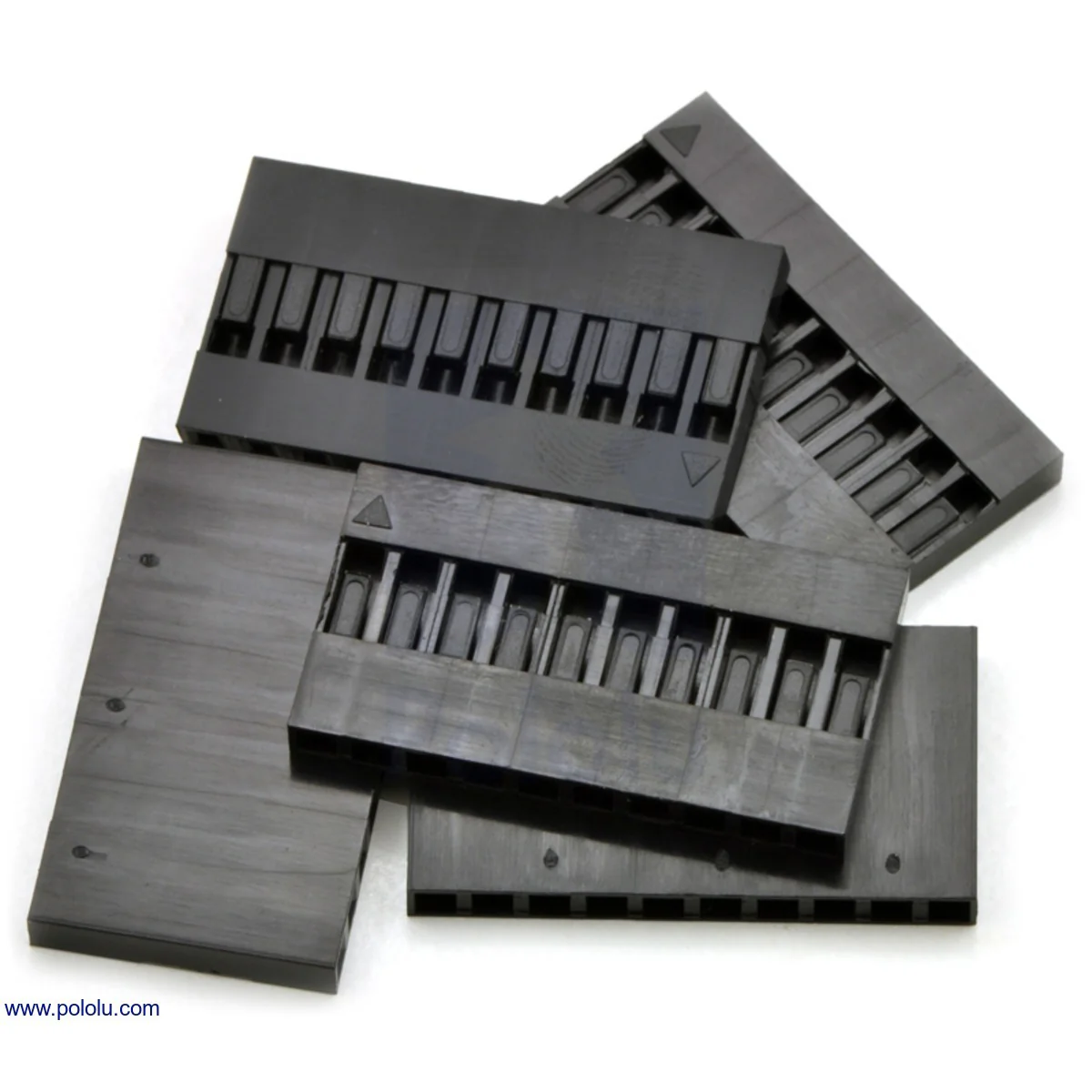

These housings let you quickly make custom cables that mate with various 0.1"-spaced connectors, including male or female headers and solderless breadboards.

Just pick the housing for the correct number of pins, pick the colors and genders for your wires, and snap them into the housings (note: it’s not easy to get the wires back out, so plan carefully!).

You can easily make cable harnesses or assemblies that branch from one connector on one side to multiple connectors on the other; you can also cut off one pre-crimped end and solder the wires directly to components to make swapping connections easy

This customer-made video shows how to make custom cables with these crimp connector housings using pre-crimped wires and self-crimped wires made with a crimping tool.

Dimensions

Pins	A (mm)	B (mm)
1 x 1	-	2.54
1 x 2	2.54	5.08
1 x 3	5.08	7.62
1 x 4	7.62	10.16
1 x 5	10.16	12.70
1 x 6	12.70	15.24
1 x 7	15.24	17.78
1 x 9	20.32	22.86
1 x 10	22.86	25.40
1 x 12	27.94	30.48
2 x 2	2.54	5.08
2 x 3	5.08	7.62
2 x 5	10.16	12.70
2 x 10	22.86	25.40
2 x 12	27.94	30.48
2 x 16	38.10	40.64
